Chapter 7:                      Windows and Doors

This chapter presents specifications and procedures for improv­ing the airtightness and thermal resistance of windows and doors.

Use lead-safe weatherization methods for all tasks relating to window and door weatherization, repair, and replacement. See "Lead-Safe Procedures" on page 48.

Use low-VOC sealants when installing sealants indoors in all window and door work.

7.1   Storm Windows

A storm window is an additional window installed outside or inside the primary window.

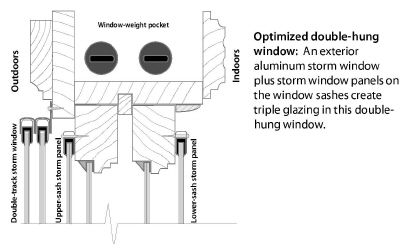

7.1.1   Exterior Aluminum Storm Windows

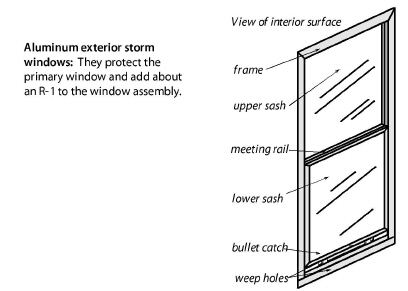

Exterior storm windows can save energy and preserve old worn primary windows from destructive weathering. You can attach exterior operable storm windows to the blind stop or exterior window casing of a double-hung window. Or, attach a fixed storm to any flat surface of a window frame or sash if the win­dow is fixed or if a movable sash can support the extra weight.

Metal exterior storm windows are the best choice if they are well designed and installed properly.

✓     Choose operable storm windows to install on operable windows. Choose fixed storm windows to install on fixed windows or on sashes that open along with the movable primary window.

✓     If operable, make sure that the storm window opens and closes to allow the maximum amount of ventilation and egress area.

✓     Do not install fixed storms on egress windows.

✓     Consider using low-e glass for glazing to increase thermal resistance.

Installation of Exterior Storm Windows

Follow these guidelines when installing storm windows.

✓     Install new storm windows in compliance with the manu­facturer's instructions.

✓     Apply a continuous bead of sealant under the top and side flanges of frame before installation. Select sealants that are compatible with their intended surfaces.

✓     Don’t seal the lower flange or designed drainage opening (i.e., weep holes).

See also "Mobile home double window" on page 499.

7.1.2   Interior Storm Windows

Interior storm windows are usually more airtight than exterior storm windows because they must be airtight to avoid conden­sation and icing on the primary window during winter. Interior storm windows are usually a metal or plastic frame enclosing some type of plastic glazing.

Consider these specifications when selecting interior storm windows.

•       Don’t install fixed interior storm windows on egress win­dows.

•       Interior storm windows should have an airtight edge seal to prevent warm moist air from passing by the interior storm window and condensing or icing the interior of the glass on the primary window.

•       Installed windows must be substantially air tight when closed.

•       Client education should include guidance that fixed inte­rior storm windows, if removed, should be marked for proper re-installation in the appropriate location.

•       Consider operable storm windows on windows that are operable.

•       Interior storm windows should be easily removable for storage. This might not be a good choice if there is not a safe place to store the windows seasonally.

•       Consider using low-e glass or plastic for glazing to increase thermal resistance.

7.2   Window Repair and Air Leakage Reduction

With the exception of broken glass or missing window panes, windows aren’t often the major source of air leakage in an exist­ing home.

Window weatherstripping may solve comfort problems around windows, even though it may not be cost-effective. Avoid expensive or time-consuming window repair measures that are implemented to solve minor comfort complaints if the weather­ization budget is limited.

7.2.1   Double-Hung Window Weatherization

Re-glazing window sashes in a quality manner is time consum­ing. This task is best accomplished as part of a comprehensive window rehabilitation project. Re-glazing wood windows may not be a durable repair without thorough scraping, priming, and painting. Use lead-safe work practices when working on win­dows. See page 48.

Repair measures may include the following.

✓     Replace missing or broken glass. Use glazing compound and glazier points when replacing glass in old windows.

✓     Caulk the window frame where appropriate to prevent air leakage, condensation, and rain leakage. Use sealants with adhesion and joint-movement characteristics appropriate for both the window frame and the building materials sur­rounding the window.

✓     Replace missing or severely deteriorated window frame components.

✓     Fill damaged wood with epoxy, before priming and paint­ing.

✓     Adjust window stops if gaps exist between the stop and jamb. Ensure that the window operates smoothly follow­ing adjustment.

✓     Weatherstrip large gaps between the sash and the sill or stops. Weatherstrip the meeting rails if needed.

✓     Replace or repair missing or non-functional top and side sash locks, hinges, or other hardware if this significantly reduces air leakage.

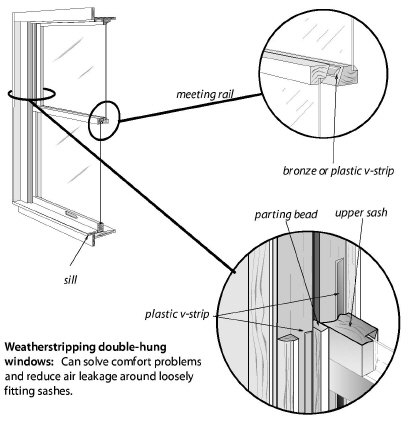

7.2.2   Weatherstripping Double-Hung Windows

Window weatherstripping is mainly a comfort retrofit and not a high weatherization priority.

Paint is the primary obstacle when weatherstripping double-hung windows. Often the upper sash has slipped down, and is locked in place by layers of paint, producing a leaking gap between the meeting rails of the upper and lower sashes.

✓     To make the meeting rails meet again, either break the paint seal and push the upper sash up, or cut the bottom of the lower sash off to bring it down.

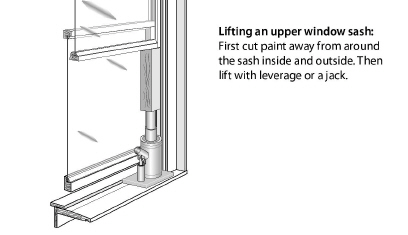

✓     To lift the upper sash, cut the paint around its inside and outside perimeter. Use leverage or a small hydraulic jack to lift the sash. Jack only at the corners of the sash. Lifting in the middle can break the glass.

✓     Block, screw, or nail the repositioned upper sash into place.

✓     To weatherstrip the window, remove the lower sash. Cut the paint where the window stop meets the jamb so the paint doesn’t pop off in large flakes as you pry the stop off. Removing a stop is sufficient to remove the bottom sash.

✓     Scrape excess paint from the sashes and the window sill.

✓     Apply vinyl V-strip o the sides of the jambs where they meet the window sash frame.

✓     Apply bronze V-strip to the meeting rail on the top sash where it meets the bottom part of the upper sash. The point of the bronze V goes skyward.

✓     Apply bronze V-strip to the bottom part of the lower sash where it meets the sill. The point of the bronze v goes out­ward.

✓     The weatherstripping is caulked on its back side and sta­pled in place, as shown in the illustration above.

7.3   Window Replacement Specifications

The purpose of these specifications is to guide the selection and installation of replacement windows. Improper window installa­tion can cause water leakage, air leakage, and noise leakage.

Existing window openings may have moisture damage and air leakage. Repair these conditions before or during window replacement.

Included here are specifications for two special window safety considerations.

1.      Windows in high risk areas, such as around doors and walkways, must have safety glass.

2.      Some bedroom windows function as a fire escape (egress). Recognize and accommodate this egress func­tion.

7.3.1   Window Energy Specifications

Installing new windows incurs a large labor expense so they should be as energy-efficient as budget allows.

1.      Replacement windows must have a U-factor less than or equal to what is required by the Michigan residential Code and Michigan Energy Code. Lower is better, espe­cially in cold climates.

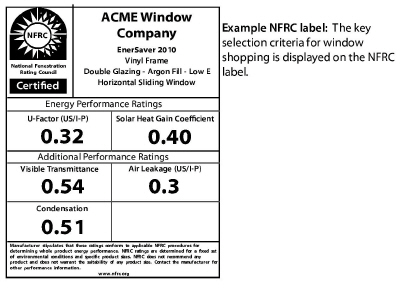

2.      Consider low-e coatings, solar heat gain coefficient (SHGC), U-value and visible light transmittance (VT) as appropriate based on direction and location. Web­sites like efficientwindows.org have window selection calculators that consider these factors.

3.      Select windows that meet the SHGC, U-value, and air leakage requirements of the work order.

7.3.2   Removing Old Windows

Remove existing windows without damaging the home’s interior finish, siding, exterior trim, or the water-resistive barrier (WRB) if possible.

1.      Protect the interior of the home from construction debris. See "Lead-Safe Procedures" on page 48.

2.      Remove window sashes, jambs, or siding, depending on the window-replacement method chosen.

3.      Repair moisture damage to the rough opening before installing the new window.

7.3.3   Installing Replacement Windows

The most important considerations for installing new windows are that the window installation is watertight and airtight.

Opening Preparation

✓     Remove existing window stops, sashes, parting strips, pul­leys, and weights.

✓     Insulate and seal existing window weight pockets if they will remain after new installation.

✓     Replace any damaged or rotting framing.

✓     Remove any material from the sealing area that will pre­vent the full adhesion of the selected sealant.

✓     Remove any material from the installation area that will prevent a level and firm installation.

✓     Seal the rough opening to the wall system’s air and thermal boundary with non-expanding sealants.

✓     Install flashing to direct water away from the window opening in accordance with manufacturer’s instructions.

Installation

✓     Install the new window in accordance with manufacturer's specifications and in alignment with the wall system’s air and thermal boundary.

✓     Install flashing per the manufacturer’s specifications

✓     Gaps between the new window and existing opening will be sealed with low-expanding foam or equivalent sealant.

✓     Use sealants that are compatible with their intended sur­faces.

7.4   Window Safety Specifications

Windows have special requirements for breakage-resistance in areas that are prone to glass breakage, and for fire escape in bed­rooms.

7.4.1   Windows Requiring Safety Glass

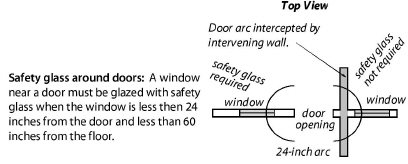

Safety glass is required in locations that the current MRC con­siders hazardous to the building’s occupants. Safety glass must be either laminated glass, tempered glass, organic coated glass, or annealed glass bearing a permanent label identifying it as safety glass, manufactured in compliance with CPSC 16 CFR 1201 or ANSI Z97.1.

Instead of safety glazing, glazed panels may have a protective bar installed on the accessible sides of the glazing 34 to 38 inches above the floor. The bar must be capable of withstanding a hori­zontal load of 50 pounds per linear foot without contacting the glass and be a minimum of 1¹/₂ inches in diameter.

Safety glass or a protective bar is required in the following haz­ardous locations.

✓     Glazing wider than 3 inches in entrance doors.

✓     Glazing in fixed and sliding panels of sliding doors and panels in swinging doors.

✓     Glazing in fixed or operable panels adjacent to a door where the nearest exposed edge of the glazing is within a 24-inch arc of the vertical edge of the door in a closed position and where the bottom edge of the glazing is less than 60-inches above the floor or walking surface. Excep­tion: If there is an intervening wall or permanent barrier between the door and the glazing, safety glass isn’t required.

✓     Glazing adjacent to the landing of the bottom of a stairway where the glazing is less than 36 inches above the landing and within 60 inches horizontally of the bottom tread.

✓     Glazing with a bottom exposed edge that is less than 36 inches above the walkway surface of stairways, landings, and ramps.

✓     Glazing in any portion of a building wall enclosing show­ers, hot tubs, whirlpools, saunas, steam rooms, and bath­tubs where the bottom exposed edge is less than 5 feet above a standing surface or drain inlet.

Glazing in an individual fixed or operable panel that meets all of the following conditions must also have safety glass:

1.      An exposed area of an individual pane greater than 9 square feet, and

2.      An exposed bottom edge less than 18 inches above the floor.

3.      An exposed top edge greater than 36 inches above the floor.

4.      One or more walkways within 36 inches horizontally of the glazing.

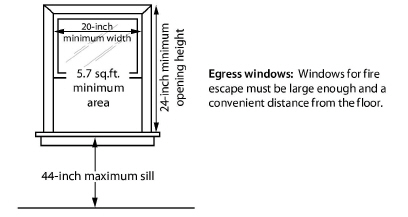

7.4.2   Fire Egress Windows

Windows are the designated fire escape for bedrooms and should offer a minimum opening for a person’s escape. If the window installation requires a code-approved egress window, observe these specifications.

1.      Each bedroom must have one egress window.

2.      Egress windows must provide an opening that is at least 20 inches wide and at least 24 inches high.

3.      Egress windows must provide an opening with a clear area of at least 5.7 square feet except for below-grade windows, which must have at least 5.0 square feet of opening.

4.      The finished sill of the egress window must be no higher off the floor than 44 inches.

5.      You may install security bars, screens, or covers over egress windows as long as these security devices are easily removable from indoors.

7.5   Window Shading Treatments

Single-pane, unshaded windows transmit about 85% of the solar heat striking them. This high transmittance accounts for up to 40% of the heat a building accumulates.

Consider these factors when deciding which windows to shade.

•       Direction the windows face. South windows transmit the most solar heat. West windows contribute solar heat in the afternoon, just when summer comfort is most difficult to provide. East windows begin heating the home early in the morning, causing more hours of potential discomfort.

•       Location of natural shade from trees, overhangs, and other objects. If windows are already shaded by trees, nearby buildings, or large overhangs, additional shading is unnecessary.

•       Total surface area of windows. Shading devices for larger windows are generally more cost-effective than for smaller windows.

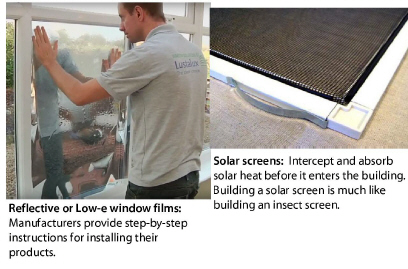

7.5.1   Solar Screens

Solar screens are often the least expensive window-shading option to retain a view through the window. Installers stretch the solar-screen fabric over an aluminum frame much like assembling an insect screen. The fabric absorbs and dissipates 65% to 70% of the solar heat before it enters the home.

Install solar screens on the exterior of a window to be effective at keeping solar radiation from penetrating the window. Therefore, they’re not practical for outwardly opening windows, such as awning or casement windows, unless attached to the movable sash’s exterior.

7.5.2   Solar Window Films

Metalized plastic window films (similar to those applied to auto­motive windows) can block 50% to 75% of the solar heat on sin­gle-pane glass. Unlike sun screens, reflective window films don’t obstruct the operation of any kind of window.

A microscopic layer of metal on the film reflects solar radiation. Installed on the interior side of single-pane glass, reflective win­dow films reflect solar heat, decrease glare, and reduce fading of fabrics and paint. The most effective films look like a mirror when viewed from outdoors during the daytime. Tinted trans­parent films that merely darken the glass aren’t as effective in blocking the sun as metalized films.

Installing reflective window film requires some skill and experi­ence. Professionals stress thorough preparation and careful installation to an absolutely dirt-free glass surface and sur­rounding sash.

7.6   Door Repair and Weatherstrip

Door operation affects building energy-efficiency, security, and durability, so doors are often an important weatherization prior­ity. A leaky door may be an important comfort problem, and weatherstripping the door can be a high-value energy conserva­tion measure.

Only weatherstrip doors that operate well, as described below. Perform all door adjustment and repair in a lead-safe manner. See "Lead-Safe Procedures" on page 48.

7.6.1   Evaluating Exterior Doors

Before weatherstripping a door, evaluate the door’s operation.

•       Does the door bind or scrape against its jambs, indicating a need for hinge adjustment, cutting, planing, or sanding?

•       Does the door close and latch tightly and evenly against its stops or is there an uneven space between the door and stop when the door latches?

•       Can you move the latched door back and forth against its stops, indicating a need for adjustment of the stop or strike plate?

•       Can you move the open door up and down, indicating loose hinges?

7.6.2   Causes of Door Binding

You can adjust binding doors by moving the door within its opening. The clearance between a door and its jamb should be between ¹/₁₆ and ³/₁₆ of an inch (2-to-5 mm).

Be aware that the distance that you move the door to adjust it is small — ¹/₁₆ inch or 1-to- 2 millimeters. The goal of adjustment is to solve a door-binding problem so that the door closes and latches correctly and that weatherstrip seals air leakage without causing a problem.

Consider these door-operating problems and possible solutions.

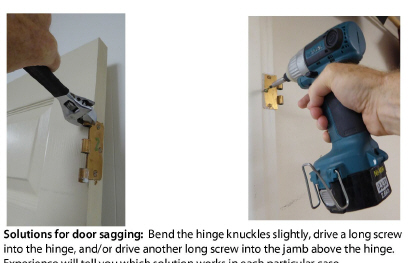

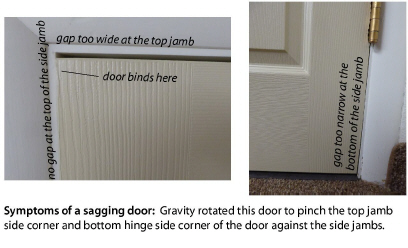

Loose, Sagging, or Misaligned Hinges

The most common door problem is that gravity has pulled the door down and toward the top-latch side corner and inward the bottom hinge-side corner.

✓     The hinge screws are loose. Tighten the screws on the jamb and door. Add longer screws if necessary. If longer screws penetrate the stud behind the door jamb, those screws can pull the door and its jamb back a little at the top hinge side.

✓     Gravity bent the top-hinge knuckles over time, creating an excessive gap between the top jamb and the top latch side of the door. This made the door’s top latch-side corner lean toward the top of the latch-side jamb and bind the door there. Use an adjustable wrench to bend the hinge knuck­les, fastened to the door, very slightly. The hinge screws must be very tight so they don’t pull out when you bend the knuckles.

✓     There is excess room on the hinge side and inadequate room on the latch side. Chisel the hinge mortise deeper to allow the screws to pull the door away from the latch-side jamb.

✓     There is excess room on the latch side and inadequate room on the hinge side. Shim the hinges outward with cardboard or sheet plastic. Loosen the hinge screws and place the shims between the hinge and jamb, then tighten the screws. If the latch-side gap varies, use shims of varying thickness behind the hinges.

✓     Closing the door creates a spring effect because the door is pulling on the hinge. Rotate the hinge slightly by shimming so that the hinge sits flat and in the same plane as the door.

Door-Frame or Structural Problems

1.      The hinge-side door jamb moved slightly toward the latch-side, wracking the door frame slightly out of square and binding the door at the top latch side and the bottom hinge side.

a.  Drive long screws through the top hinge or the upper part of the hinge jamb.

b.  Or, loosen the bottom hinge and the middle hinge if nec­essary. Install cardboard or plastic shims behind the hinges that move the door up and away from the bottom hinge side jamb and toward the bottom latch side.

2.      The building has settled near the door.

a.  Cut, plane, or sand the door so it closes without rubbing or binding against its jambs.

b.  Use a jack to level the floor if practical — the building has a basement, for example. Devise a way to support the floor in its newly adjusted position.

3.      Temperature and humidity changes swell and shrink the door seasonally. Or, the door is permanently swollen.

a.  If the door swells and shrinks, wait until it shrinks and apply oil-based paint or urethane varnish to seal the door and prevent future swelling.

b.  If the door is permanently swollen, plane and/or sand the door. Or if there is room between the jambs and framing, try to move the jambs outward slightly after removing the casing on one side.

4.      Paint has built up and reduced the door’s operating gap.

a.  Plane or sand off the excess paint. Planing and sanding are a last resort, so try the previous suggestions first.

7.6.3   Adjusting Door Stops and Latches

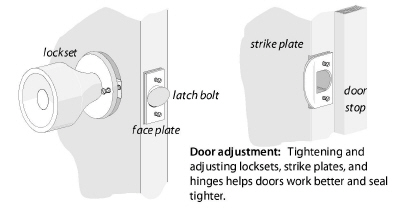

Tighten loose door knobs, face plates, and strike plates before concluding that there is a problem with the stops or latches.These steps should precede weatherstripping.

Problems with the Door Stop

There are two different types of door stops: the nailed-on type and the integral type. You can move the nailed-on type

If a door won’t latch, inspect the door stops, door jambs, hinges, and weatherstripping to see if they’re causing the binding.

✓     If the door is warped and doesn’t fit well against its stops, adjust the stops by moving them against the door if they are nailed-on stops.

✓     If the stops are integral to the door jambs, plane them so door closes snugly against its stops.

Problems with the Latch

The strike plate is mortised into the latch side of the door frame The latch bolt seats into a hole in the strike plate and the door jamb under it. Often the latch bolt doesn’t seat because of prob­lems with the hinges or the jambs as discussed earlier.

If there’s no obvious problem with the stops, hinges, weather­strip, mark the strike plate to evaluate how far you have to move it. Put lipstick or crayon wax on the latch and close the door and then notice the mark on the strike plate. Move the strike plate or use a rotary file to remove some metal from the strike plate, enough to allow the latch bolt to seat itself.

✓     Remove the two screws from the strike plate.

✓     Move the strike plate enough to seat the latch bolt. Use toothpicks to fill existing screw holes.

✓     Consider driving slightly longer screws, if you have to move the strike plate.

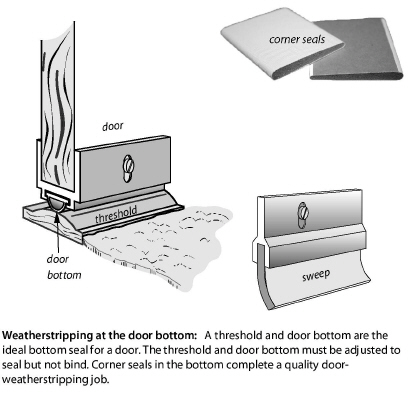

7.6.4   Weatherstripping Doors

✓     Install weatherstrip only on doors that operate properly as described previously.

✓     Consider how much the weatherstrip narrows the width of the door, when weatherstripping a door with a lot of traf­fic.

✓     Ask the client whether they want to locate a foot-wiping rug on the floor, adjacent to the door. Make sure that the threshold is high enough to accommodate the rug.

Weatherstrip Specifications

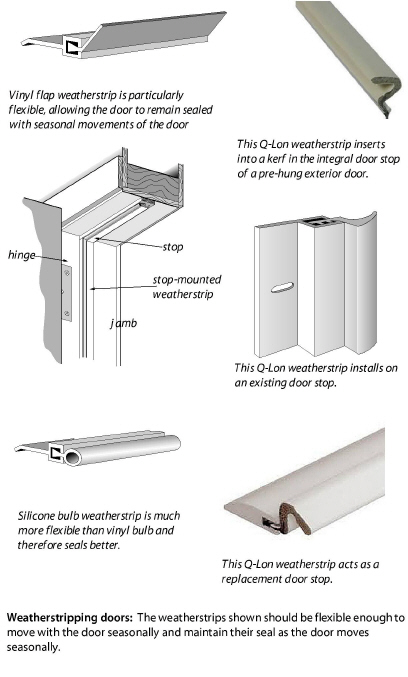

✓     When possible, consider replacing the existing nailed-on door stop with a door stop that includes the weatherstrip to avoid reducing the existing width of the door.

✓     Select a durable and flexible weatherstrip to seal the door’s side jambs and head jamb.

✓     Seal the threshold and bottom corners of the door with caulk and/or gaskets.

Installing Weatherstrip

Consider these suggestions when weatherstripping doors.

✓     Seal the back of the weatherstrip to prevent air from leak­ing behind the weatherstrip.

✓     Install thresholds and door sweeps, if needed to prevent air leakage at the door bottom. These air seals shouldn’t bind the door. Caulk underneath and on both sides of the door seal.

✓     Install corner seals to close the gaps at the bottom corners of the door jambs.

✓     Seal gaps between the stop and jamb with caulk.

✓     Install a door sweep if you don’t install a door bottom.

✓     The door must operate smoothly after you weatherstrip it.

7.7   Door Replacement

Sometimes you can replace an exterior door for less labor com­pared to repair and readjustment. The labor just to replace the threshold on an existing pre-hung door is itself very challeng­ing.

Install flashing around doorways according to the specifications in“Installing Replacement Windows” on page 231.

You can replace an exterior door, as an efficiency measure, if you can justify the cost under program rules. Use RRP methods to ensure occupants and workers aren’t exposed to lead dust during door replacement. See "Lead-Safe Procedures" on page 48.

7.7.1   Replacement Door Standards

Observe the following standards when replacing exterior doors.

✓     Select doors that meet the Solar Heat Gain Coefficient (SHGC), U-value and air leakage requirements of the work order.

✓     Select doors that meet the egress and safety glass require­ments of the location where they are installed.

✓     Install new door in accordance with manufacturer's speci­fications in alignment with the wall system’s air and ther­mal boundary.

✓     Install exterior flashing and weatherstripping per the man­ufacturer’s specifications.

✓     Gaps between the new door frame and the rough opening will be sealed with low-expanding foam.

✓     Adjust the new threshold for proper fit and minimal air leakage at the door bottom.

✓     Final installation will be airtight and watertight.

✓     Replacement doors in fire-rated assemblies must use seal­ants and weather strips compatible with those fire-rated assemblies.

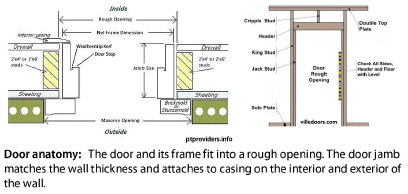

7.7.2   Replacement Door Installation

Follow these steps to install a pre-hung replacement door.

1.      Remove the existing door casing, the door, and its frame.

2.      Remove the old threshold and check the floor under­neath the door for level. Check the rough opening for square with a framing square or by measuring the diag­onals.

3.      Level the floor across the door width and make sure it aligns with the nearby floor.

4.      Make sure that the door will clear the existing floor with extra room for a foot-wiping rug, if appropriate. This may require the floor, directly under the threshold, to be a little higher than the existing interior floor.

5.      Prepare the door’s rough opening thoroughly to create a continuous air barrier and water barrier using the air sealing and water sealing procedures specified in “Win­dow Replacement Specifications” on page 229.

6.      If the door frame has no exterior casing, fasten two pieces of 1-inch lumber 4 inches longer than the frame is wide horizontally to the door jambs across the new door frame. These are temporary braces to hold the door flush with the interior or exterior finish wall mate­rial while you fasten the door to the jambs.

7.      Install a bead or caulk on the floor where the exterior edge or the threshold will sit.

8.      Place the door in the opening and level the hinge side using three sets of 2 opposing wedges behind each hinge.

9.      Drive one or more long screws through the top hinge, jamb, and wedges into the framing lumber. Then fasten through the hinge-side jamb and wedges near the other two hinges.

10.  Check the frame for square with a framing square or by measuring the door frame’s diagonals. Move the frame slightly if necessary to make it square.

11.  Install wedges and screws at the strike plate and then at the top and bottom of the lock side of the door frame.

12.  Read the directions and adjust the new threshold for proper fit against the new door’s weatherstripped bot­tom.

13.  Install interior casing and exterior casing if the door didn’t come equipped with casing.

7.8   SWS Alignment
