Chapter 10:               Baseload Measures

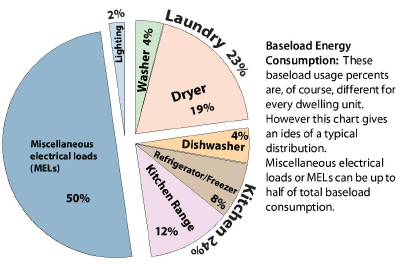

Baseload energy consumption accounts for a large part of home energy use. This chapter discusses energy savings for refrigera­tion, entertainment, lighting, laundry, and water heating.

10.1   Refrigerator Replacement and Maintenance

Refrigerators built after 1993 use less electricity than refrigera­tors built before that year. Another efficiency increase occurred in 1999 in the refrigerator industry.

10.1.1   Refrigerator Replacement

Comply with the following requirements when replacing refrig­erators.

✓     The new refrigerator must fit the existing space.

✓     The new refrigerator must be 40% more efficient than the minimum federal standards or be labeled Energy Star.

✓     The new refrigerator must have a minimum one-year war­ranty.

✓     Take refrigerators that are replaced to a facility that is licensed to reclaim their refrigerant and recycle the refrig­erator’s parts.

✓     No refrigerator, taken out of service, may be returned to service by sale, barter, or for free.

✓     Instruct the client about location and operation of energy controls such as the thermostats for the refrigerator and freezer.

Some clients use two or more refrigerators in their homes, and this practice results in high electricity usage. Suggest to these cli­ents to consolidate food storage into a large single refrigerator.

10.1.2   Refrigerator Cleaning and Tuning

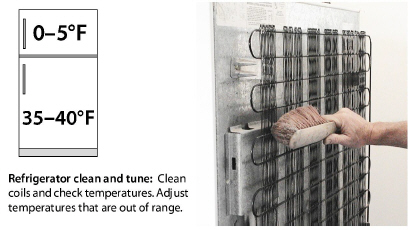

Cleaning and tuning an existing refrigerator can increase its effi­ciency. Follow these procedures.

✓     Clean dirt off clogged coils.

✓     Move objects that block airflow around the refrigerator, and ask the client to store the objects elsewhere.

✓     Measure refrigerator temperature and verify that it is between 35° and 40° F. Otherwise re-set the thermostat to this temperature range.

✓     Measure the freezer temperature, and verify that it is more than or equal to 0° F. If it is colder that 0°, re-set the freezer’s thermostat to 0° F.

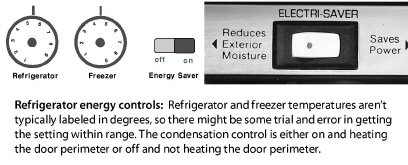

✓     Check the condensation-control switch. If the condensa­tion control is on, the refrigerator door or door frame is being heated. Try turning the switch to “energy saver” which turns the heating elements off. If frost forms on the door, turn the control back on.

✓     Explain the function of the condensation control to cli­ents. If the energy-saver setting isn’t adequate for very humid weather, the occupants could toggle setting.

10.1.3   Refrigerator Metering Protocol

Older refrigerators use from 1000 to 2000 kWh per year. Newer Energy Star refrigerators use less than 400 kWh per year. You need a minimum of two hours to accurately measure refrigera­tor energy consumption using a recording watt-hour meter.

There are two common options for evaluating refrigerator energy consumption for replacement.

1.      The first option is to follow the metering procedure pre­sented here.

2.      The second option is to use the resources included in the WAPTAC Refrigerator Guide. These resources include a database of refrigerators by model with approximate electricity usage and a refrigerator analysis tool.

Metering Accuracy Issues

A number of unusual circumstances could reduce the accuracy of the metering, including the following.

•       A quantity of warm food recently placed in the refrigerator.

•       Abnormally high or low ambient temperature. For exam­ple: refrigerators in garages during the summer or winter; or refrigerators in vacant homes where heating or cooling systems aren’t operating.

Refrigerator Metering Procedure

Follow these steps to measure the electricity usage of a refrigera­tor.

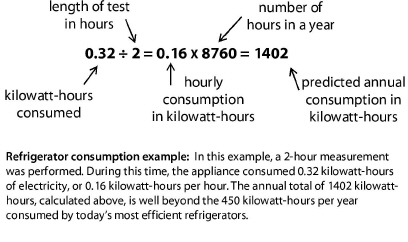

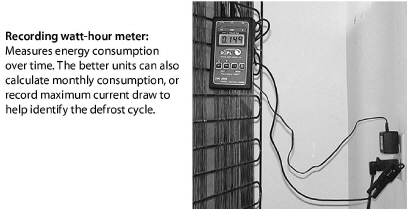

1.      Connect the refrigerator to a recording watt-hour meter. Run the test for at least two hours. You don’t need to stop at two hours, and a longer measurement is better. During the test, avoid opening the refrigerator, or do so briefly.

2.      At the end of the test, read the kilowatt/hours of con­sumption measured by the meter. Divide this number by the number of hours in the test. This gives you the number of kilowatt-hours consumed each hour. Multi­ply this number times the total number of hours in a year (8760 hours per year). The product of this calcula­tion is the annual kilowatt-hours of electrical usage.

3.      Remove the meter and plug the refrigerator back into its outlet.

10.2   Electronic Entertainment and Computers

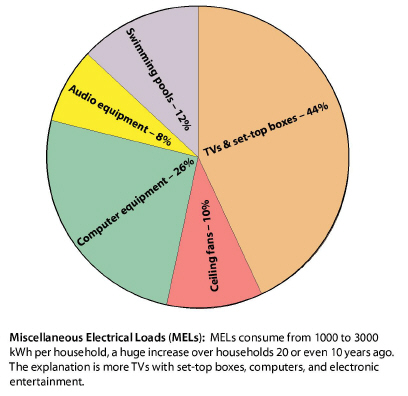

The purpose of this section is to help clients conserve electricity and identify major electricity users among their computer and entertainment systems. These measures are not to be paid for with DOE or LIHEAP funds.

✓     Advise clients to buy equipment labeled Energy Star.

✓     Advise clients to buy electronic equipment that doesn’t need to be left on when not being used.

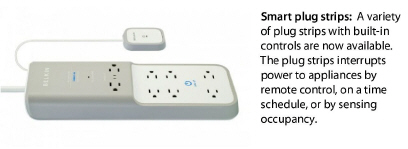

✓     Recommend power strips that can be turned off when electronic equipment is not being used.

✓     Standby losses for electronic equipment should be one watt or less.

✓     Typical Set-top boxes consume between 30 and 50 W even when they’re switched off. Most energy efficient models still consume more than 10 W when they’re off.

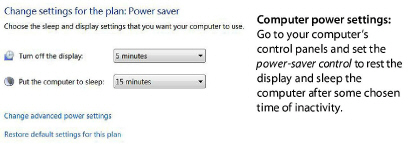

✓     Read the operating manual and enable all energy-saving features of an appliance. Explain the energy-saving fea­tures to the client.

✓     Verify that clients have operating instructions for their electronic equipment or that they know how to access instructions using the Internet.

✓     Recycle or dispose of equipment using principles of the Environmental Protection Agency (EPA) Responsible Recycling (R2) Initiative.

10.3

Lighting-Efficiency Improvements

Lighting-efficiency improvements include bulb (lamp) replace­ment, daylighting, fixture replacement, and energy-efficient lighting controls.

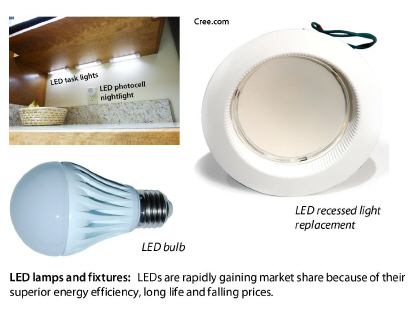

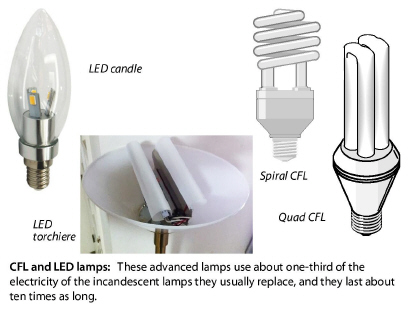

10.3.1   LEDs versus CFLs

CFLs were the dominant energy-saving alternative to incandes­cent for at least 20 years. Now, LEDs have largely captured the lighting-retrofit market because of their superior energy effi­ciency, long life and low cost.

CFLs are still a viable choice, especially when a weatherization agency or contractor has a large stock of them. However the future now belongs to LEDs. The more LEDs that WAP installs, the more energy savings WAP will achieve from lighting retro­fits.

10.3.2   Daylighting

Use daylighting as appropriate to save electricity.

✓     Replace, adjust, or repair window coverings to maximize useful daylight where appropriate.

✓     Design and use active and passive day lighting where appropriate.

10.3.3   Light Color

Some clients are sensitive to light color. Manufacturers design and label commercial lamps with a color temperature (°K), depending on their “coolness” or “warmness.” People perceive colors at the blue-green end of the color spectrum as cool and those at the color spectrum’s red end as warm. Morning sunlight from the north is a cool blue-green and from southwest evening sunlight is a warm red-yellow.

Office workers perform better under cool light sources for visual tasks, since cool light produces better illumination and contrast at the printed page, workbench, or other task. People often prefer warm light sources for living spaces, because warm light seems to many to illuminate people’s skin and clothing in a flattering way.

Light color is a complex topic of color measurement by degrees Kelvin (°K) through a range of 3000°K (very warm) to 5000°K (very cool). The full discussion of this range of options is more relevant for commercial and industrial buildings than residen­tial buildings. That discussion goes beyond the scope of this field guide.

10.3.4   Lighting Retrofit Equipment

Consider The following requirements when retrofitting lighting equipment.

✓     Ask the client about their lighting usage, and explain the electrical savings potential for switching to compact fluo­rescent lamps (CFLs) or light-emitting diodes (LEDs).

✓     Demonstrate a CFL or LED bulb to the client if they’re hesitant about replacing their incandescent light bulbs.

✓     Select the type of CFL or LED for it’s lumen output, according to its use and the client’s accustomed light level.

✓     Install the CFL by holding the base, never by holding the glass tube.

✓     Turn on each CFL or LED after installation to ensure that it operates. Make sure that the client is satisfied with the light level. Most clients prefer a warm color of light for their bulb replacements.

✓     Replace a halogen-torchiere lamp holder with an LED conversion kit for the torchiere.

✓     Replace incandescent bulbs in candelabra fixtures with LEDs designed for this purpose.

✓     All bulbs, fixtures, and controls must be appropriate for the intended application (for example: enclosed, dimma­ble, indoor, outdoor).

✓     Select bulbs, fixtures, and controls to provide the bright­ness and light quality required in that application (for example: task lighting, walkway lighting, night lights).

✓     All bulbs, fixtures, and controls must be Energy Star® rated where applicable.

✓     Bulb wattage must not exceed rated wattage of the light fixture.

✓     Select bulb replacements based on expected life span, light quality, and lifetime energy use.

✓     Install occupancy sensing controls where appropriate.

✓     All bulbs, fixtures, and controls will be UL-approved and installed according to local code(s) and NFPA 70 National Electric Code

✓     Inform clients about proper recycling of fluorescent bulbs by stores, municipal waste departments, or other recycling organizations.

✓     Replace fluorescent light ballasts containing polychlori­nated biphenyls (PCBs) according to the EPA’s Healthy Indoor Environment Protocols for Home Energy Upgrades.

10.3.5   Reducing Fixture Wattage in Over-Lit Areas

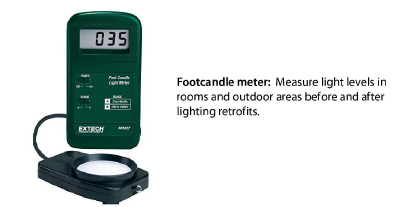

Many rooms and common areas of multifamily buildings are unnecessarily over-lit. Areas that, by reasonable standards, require between 2 and 15 footcandles sometimes measure 20 to 60 footcandles. Measure light levels before and after lighting ret­rofits. Occupants very seldom notice light-level reductions unless they know it happened.

General Fixture Retrofit

•       Clean lenses and fixtures as part of the retrofit.

•       Consider replacing incandescent and CFL bulbs with LEDs of a reduced lumen output.

•       Retrofit point-source fixtures in over-lit areas with the same bulb type of a lower wattage and reduced lumen out­put.

•       Replace existing fixtures in intermittently occupied areas with fixtures equipped with integral occupancy sensors if available.

Multifamily Fluorescent Fixtures

Multifamily stairs, parking garages, hallways, and lobbies are some of the most over-let areas. Fluorescent fixtures light many of these areas. Consider these retrofits depending on the build­ing’s budget and the cost of electricity.

•       Clean lenses and fixtures as part of the retrofit.

•       Replace T-12 lamps with T-8 lamps.

•       Remove up to two tubes from 4-lamp fixtures or 1 lamp from a 2-lamp fixtures.

•       Modernize existing magnetic-ballast fixtures to the Super T-8 standard.

•       Replace fluorescent fixtures with LED fixtures with reduced lumen output.

10.4   Clothes Washer Selection/Replacement

Observe the following standards to minimize the energy con­sumption of clothes washers.

10.4.1   Clothes Washer Selection

Comply with these requirements when selecting a new clothes washer.

✓     Select clothes washers that meet or exceed Energy Star® and WaterSense® specifications.

✓     Maintain adequate clearance around appliance when fit into the available space, so access to cabinets and light switches aren’t blocked.

✓     Appliance must be covered by a minimum one-year war­ranty.

✓     Standby losses for clothes washers must be one watt or less.

10.4.2   Clothes Washer Installation

Comply with these requirements when installing a new clothes washer.

✓     Install clothes washers in accordance with manufacturer specifications, (including leveling, plumbing connections, electrical connections) and meet all applicable codes.

✓     Install shut-off valves on hot and cold supply water if not already present.

✓     If located in conditioned or finished area, install an over­flow pan and drain the pan to a safe location

✓     Air seal any penetrations to the exterior of the home cre­ated by the washer’s installation.

✓     Demonstrate energy-related appliance controls to the occupant.

✓     Provide specific information about proper maintenance of the washer to the occupant.

✓     Provide warranty information, operation manuals, and installer to the owner.

10.5   Clothes Dryer Selection/Replacement

The following standards minimize the energy consumption of clothes dryers.

10.5.1   Clothes Dryer Selection

Comply with these requirements when selecting a new clothes dryer.

✓     Maintain adequate clearance around appliances to avoid blocking cabinets and light switches.

✓     Verify that appliances have a minimum one-year warranty.

✓     Select equipment with features that reduce peak electric demand and energy use.

✓     Standby losses for clothes washers must be one watt or less.

✓     Dryer must have a minimum of one-year warranty.

10.5.2   Clothes Dryer Installation

Install the appliance in accordance with manufacturer specifica­tions and all applicable codes.

Consider these requirements when replacing clothes dryers.

✓     Demonstrated energy-related dryer controls to the occu­pant.

✓     Provide specific information of the proper maintenance of the equipment to the occupant.

✓     Provide warranty information, operation manuals, and installer contact information to the occupant.

✓     Recycle or remove and dispose of replaced appliances in accordance with local regulations, including older equip­ment switches containing mercury.

If existing venting doesn’t meet manufacturer specifications, code, or the following criteria, install new venting using these specifications.

✓     Vent all dryers, other than condensing dryers to the out­doors.

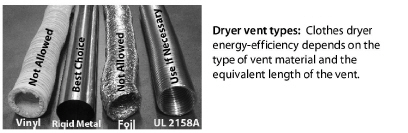

✓     Vent appliance to the outdoors using metal-to-metal or UL listed foil-faced dryer vent.

✓     Use only metal clamps on semi-rigid metal and UL listed foil-type vent pipes.

✓     Install a pest screen at the termination.

✓     Insulate at least 3 feet of the vent closest to the home’s exte­rior to a minimum of R-6.

✓     If a combustion appliance is used in the dwelling, perform combustion-safety testing as described in Combustion-Safety Evaluation.

✓     Seal penetrations to the outdoors created by the appliance installation to an airtight condition.

10.5.3   Clothes Dryers Service and Venting

Clogged clothes-dryer vents are a leading cause of house fires. The drying time of a load of laundry depends first on the dryer installation. The original installation can also cause excessive drying time when flexible vents are excessively long, kinked, or restricted in some other way. The amount of lint in the dryer, vent piping, and vent termination also affects dryer safety and efficiency. Lint builds up over time and slows drying time and increases the fire hazard.

Vinyl flexible dryer vent isn’t an approved dryer vent material. To reduce energy cost and improve safety, replace vinyl flex duct with metal flexible dryer vent.

Service Procedures

Observe the following suggestions when servicing clothes dry­ers to prevent fires, reduce drying time, improve energy effi­ciency, and reduce lint build-up.

✓     Unplug the clothes dryer before making any improve­ments.

✓     Remove the vent pipe and vent termination and clean all lint out of them.

✓     Clean lint out of the electric heating elements and the air-way around them.

✓     Inspect the airway at the dryer’s vent connection, and clean the lint out of it.

Dryer Exhaust Venting Requirements

Follow these venting requirements for clothes dryers when ser­vicing dryers.

✓     Electric dryer exhaust vents should be piped in 4-inch-diameter rigid aluminum or galvanized pipe whenever and wherever possible.

✓     Gas dryer exhaust vents must be 26-gauge or heavier gal­vanized pipe or approved flex pipe. Only licensed gas tech­nicians can service or change venting to a natural-gas or liquid propane dryer.

✓     Don’t use screws or rivets to join rigid pipe sections because they collect lint. Join and seal the sections with sil­icone caulking.

✓     Exhaust venting duct must be supported at maximum 4-foot intervals.

✓     Use short, stretched pieces of flexible metal dryer vent, labeled UL 2158A, to connect the dryer to the rigid vent through difficult framing or to allow dryer to be moved in and out. Make connections using rigid fittings installed male-to-female in the direction of exhaust flow to prevent lint build-up.

✓     Fasten UL listed foil-type vent or semi-rigid sheet metal to rigid metal with a clamp.

✓     Fasten other specialized duct fittings according to manu­facturer’s specifications.

✓     Seal duct connection with foil tape labeled UL 181B or 181B-M.

✓     Install a booster fan for dryer ducts exceeding 35 feet in duct equivalent length. When calculating duct length, add 5 feet for each 90º bend and 2.5 feet for each 45º bend.

✓     Provide make-up air if you measure excessive depressur­ization or if the dryer moves 200 CFM or more.

10.6   Water-Heating Energy Savings

For safety information on combustion water heaters, see Spillage and CO Testing.

The most important tasks in evaluating hot water energy savings are determining the water heater’s insulation level, measuring the shower’s flow rate, and measuring the water temperature.

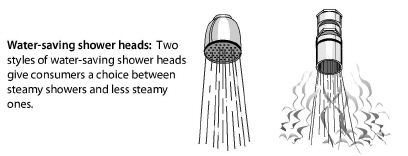

10.6.1   Water-Saving Shower Heads and Faucet Aerators

Most families use more hot water in the shower than for any other use. A low-flow shower head reduces this consumption.

✓     Water-saving shower heads must be rated for a flow of 2.5 gallons per minute or less.

✓     Water-saving sink aerators must be rated for a flow of 2.2 gallons per minute or less.

✓     Use caution in removing the existing shower head or aera­tor from old, fragile plumbing fixtures.

✓     The shower or faucet flow rate must be satisfactory to the occupants and be documented.

✓     Select features that meet any special needs of the occupant: swivel head, hand-held shower, for example.

✓     Evaluate water quality for debris that may clog the shower head or aerator.

✓     Check the fixtures after installation for adequate tightness to prevent leakage at the connection.

✓     Recycle replaced shower heads and aerators. Recycle the replaced shower head to ensure no further use.

Measuring Shower or Faucet Flow Rate

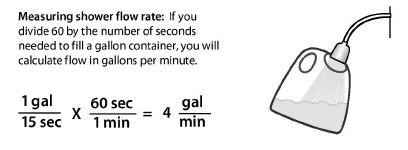

You can determine flow rate by measuring the time needed to fill a one-gallon plastic container. If the one-gallon container fills in less than 20 seconds, your flow rate is more than 3 gallons per minute.

1.      Start the shower and set it to the maximum showering rate.

2.      Start a stopwatch at the same time you move the con­tainer underneath the shower, capturing its entire flow.

3.      Record the number of seconds and divide 60 by that number to find gallons per minute.

10.6.2   Storage Water Heater Blankets

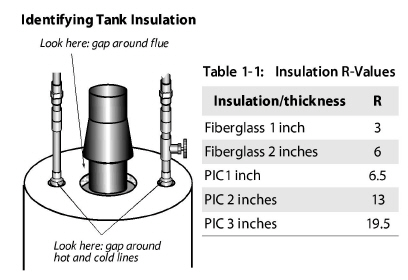

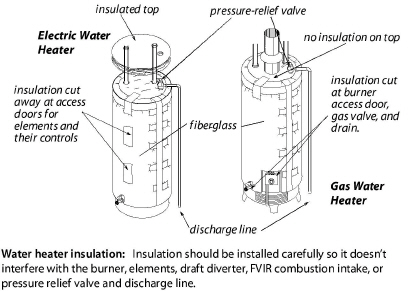

Install an R-11 insulation blanket on all water heaters unless the manufacturer’s label prohibits it. Follow these guidelines to avoid fire hazards and to simplify future service.

Gas Water Heaters

When you install insulation on gas water heaters, use these spec­ifications.

✓     Keep insulation at least 2 inches away from the gas valve and the burner access panel. Don’t install insulation below the burner access panel.

✓     Don’t cover the pressure relief valve or discharge line with insulation.

✓     Don’t insulate the tops of gas-fired water heaters because the insulation can obstruct the draft diverter.

✓     Don’t insulate Flammable Vapor Ignition Resistant (FVIR) water heaters. The blanket may shift and unintentionally cover the combustion air openings.

Electric Water Heaters

When you install insulation on electric water heaters, use these specifications.

✓     Mark the blanket to locate the thermostat and heating ele­ment access plates and cut the blanket at these locations.

✓     When you cut the blanket for the thermostats, cut the bot­tom and sides but not the top. This creates a hinge that allows the door in the insulation to swing open and closed.

✓     Cover the top of the water heater with insulation.

✓     Don’t cover the pressure relief valve and discharge line with insulation.

✓     If you specify insulation for an existing water heater which has a relief valve but no discharge line, install a discharge line outside the insulation to within 6 inches of the floor.

10.6.3   Measuring and Adjusting Hot Water Temperature

Use the following instructions to adjust water temperature.

✓     Shut off power to an electric water heater before opening thermostat access panels.

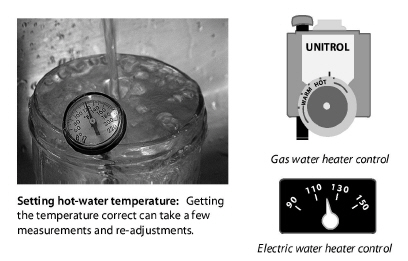

✓     Measure the water temperature at the nearest faucet to the water heater. Reduce the temperature to 120° F, or as pre­scribed by local code and with the client’s permission.

✓     On electric water heaters, set both upper and lower ther­mostats to the same temperature.

10.6.4   Heat Traps and Water-Heater Pipe Insulation

Heat traps are piping loops or valves that prevent thermo-siphoning of water in and out of the piping near the water heater. Install heat traps if the water heater has no built-in heat traps.

Install pipe insulation to slow convection of hot water into the water lines near the tank.

✓     Interior diameter of pipe sleeve must match exterior diam­eter of pipe.

✓     Insulate the first 6 feet of hot and cold water pipe from the water heater.

✓     Use pipe wrap with a minimum thickness of 1 inch and a minimum R-value of 2. Cover elbows, unions and other fittings with the same insulation thickness as the pipe.

✓     Corners must be mitered, tight fitting, sealed and secured with appropriate material to prevent failure.

✓     Keep pipe insulation 6 inches away from single-wall vent pipe and 1 inch away from Type B vent.

✓     Fasten pipe insulation with zip ties, tape, or other approved method.

10.7   Selecting Storage Water Heaters

Storage water heaters are the most common water heaters found in homes. In New Hampshire, tankless coils in boilers are also very common.

10.7.1   Determining a Storage Water Heater’s Insulation Level

Common storage water heaters consist of a tank, insulation sur­rounding the tank, and an outer shell. There is typically either 1 or 2 inches of insulation surrounding the tank. The insulation is either fiberglass or polyisocyanurate.

Follow this procedure to determine the water heater’s insulation level.

✓     Look for a listing of R-value on a label on the water heater.

✓     Find a hole in the outer shell where the flue pipe emerges or where plumbing connects. Look around the hole for either fiberglass or polyisocyanurate insulation.

✓     If the hole isn’t large enough to see the insulation level on an electric water heater, try removing the access panel for the heating element after disconnecting power from the unit.

✓     You may just be able to see the gap between the tank and outer shell. If you can’t see this gap, use a ruler or probe to push through the insulation along side of a pipe connect­ing to the tank until the probe hits the steel tank to deter­mine thickness. Make sure that the probe is against the tank and not against a nut welded to the tank.

✓     If additional tank insulation is installed, it must be at least R-11. Don’t install insulation if the manufacturer’s label on the water heater prohibits it.

10.7.2   Storage Water-Heater Selection

Existing gas water heaters, including propane, typically use 200 to 400 therms per year. New gas water heaters use as little as 175 therms per year, resulting in a savings of between 25 and 225 therms per year. Similar savings are possible by replacing elec­tric water heaters. Consider the following recommendations for specifying water heaters.

•       A replacement gas or oil storage water heater should have an energy factor of at least 0.67 and be insulated with at least 2 inches of foam insulation.

•       A replacement electric water heater should have an energy factor of at least 0.93 and be insulated with at least 2.5 inches of foam insulation.

10.8   Alternative Water-Heaters

Weatherization programs sometimes choose alternative water-heating products to improve efficiency and safety. In the case of a boiler with a tankless coil, adding an indirect fired tank as a separate zone is a good option.

10.8.1   Sidewall-Vented Gas Storage Water Heaters

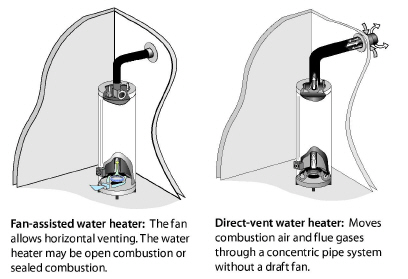

When gas storage water heaters cause persistent venting prob­lems, specify a sidewall-venting water heater. Two common types of these water heaters are shown here.

✓     Choose a sealed-combustion sidewall-vented gas water heater, if possible. Next best is a fan-assisted unit.

✓     Install the replacement water heater in accordance with manufacturer specifications, 2012 IRC G2427.8.

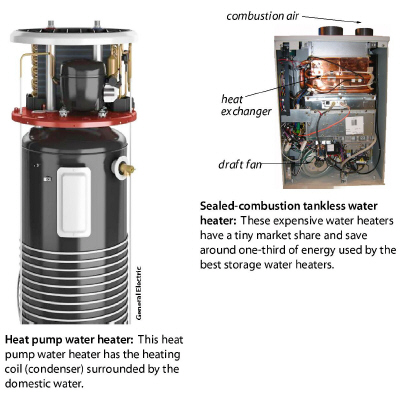

10.8.2   On-Demand Gas Water Heaters

On-demand gas water heaters are more efficient and cost less to operate compared to conventional gas storage water heaters. However, on-demand gas water waters are more expensive to install and may have shorter lifespans compared to storage water heaters. You must also ensure that the gas line to the house is big enough to meet the new demand caused by an on-demand water heater.

Choose a sealed-combustion on-demand gas water heater, if possible. A fan-assisted on-demand gas water heater is the next best choice.

10.8.3   Heat Pump Water Heaters

Heat pump water heaters can heat water at up to 2.3 times more efficiently than electric-resistance storage water heaters. Heat pump water heaters use heat from surrounding air to heat water. They cost much more than conventional electric water heaters but are far less costly to operate.

10.9   Water Heater Installation

Follow these procedures when installing a storage water heater or an alternative water heater.

✓     Replacement water heater must have a pressure-and-tem­perature relief valve with a discharge line that terminates less than 6 inches from the floor into a floor drain or drain pan.

✓     The discharge pipe should be made of rigid metal pipe or approved high-temperature plastic pipe.

✓     Install dielectric unions and a backflow preventer as part of a water heater replacement if any of these components are missing from the existing installation.

✓     Install an expansion tank for all storage water-heater replacements. Not required for systems on private wells with a bladder tank.

✓     Install an emergency drain pan, with sides that extend a minimum of 4 inches above floor, under each replacement water heater that is installed in an area that would be dam­aged by a leak.

✓     Install a ³/₄-inch drain line to the tapping on drain pan. Terminate the drain line in a floor drain or outdoors, at least 6 inches above grade.

✓     Install heat traps on the water heater’s inlet and outlet pip­ing if the manufacturer hasn’t provided traps.

✓     Adjust water temperature to 120° F or to the lowest setting acceptable to occupants.

For a complete list of DOE installation requirements for water heaters, see SWS Detail 7.8102.2 Storage-Type Appliance.

10.10   Comparing Water Heaters

The choice of fuel and model for a storage water heater isn’t easy and it involves many factors including safety, reliability, effi­ciency, and installed cost. See Residential Energy Dynamics free comparison tool.

10.10.1   Safety Comparison

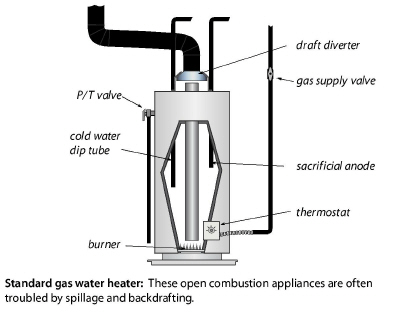

Conventional natural draft gas water heaters vent their combus­tion by-products into a chimney. They can spill products of combustion into the living space, especially if the chimney isn’t tall enough, warm enough, or sized properly. Sharing of a main chimney with another combustion appliance can cause venting problems. If the furnace or boiler is replaced with a sealed-com­bustion or horizontal-vented model, the chimney may then be too big for the remaining combustion water heater.

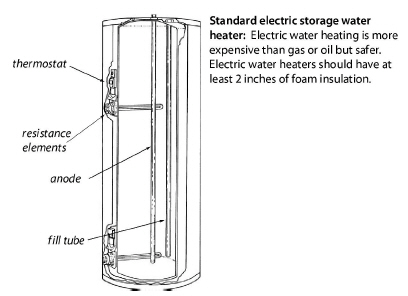

Electric water heaters have no chimney and need no combus­tion air, which makes them safer for buildings with low natural air leakage, compared to gas storage water heaters.

Electric water heaters have no products of combustion. How­ever, because their recovery capacity is generally much slower than gas water heaters of the same size, there is a greater chance of someone trying to compensate for a cold shower by setting the electric water heater to an unsafely high temperature where occupants could be scalded.

10.10.2   Reliability Comparison

Storage water heaters are popular because they are inexpensive and reliable. Both gas and electric storage water heaters are sim­pler and more reliable than more expensive and complex water heaters. The lifespan of storage water heaters is typically 13 years, but depends on local water quality and the quality of the water heater’s storage tank.

Most heaters have glass-lined steel tanks which are typically warranted for five years. All types of heaters are available with larger or additional sacrificial anodes, which are pieces of metal that corrode before the tank does, thereby extending the tank life and maybe the warranty. If you buy a ten-year guarantee heater instead of a five-year guarantee heater, this choice might reduce the future cost of replacement and possible water dam­age from eventual storage-tank leaks.

10.10.3   Efficiency and Energy Cost Comparison

Conventional gas storage water heaters are rated at about 80% steady-state efficiency. However, whenever a storage water heater isn’t firing, it’s losing heat up the chimney. This happens when cold air, flowing through the heater, is warmed by the heater and escapes up the flue. This off-cycle heat loss reduces annual efficiency drastically and may result in the water heater’s energy factor (EF) being less than 0.60.

The exact EF for a particular storage water heater is difficult to estimate because of many factors including: chimney height, chimney diameter, wind, the home’s air-tightness, outdoor tem­perature, and water heater temperature setpoint. Considerable these variables, the actual EF can vary from 0.60 to 0.40 or even lower. Nevertheless, gas storage water heaters cost less to operate than electric water heaters with the same insulation level.

As a heating fuel, electricity is approximately 2.5 times as expen­sive as natural gas. However, electric water heaters have no chimney and therefore no chimney losses. Electric water heaters do lose heat through the insulation jacket, which results in an EF of around 0.90. Heat-pump water heaters have an operating efficiency of over 200% (COP = 2.3) because they heat water with heat from the surrounding air. But because the electricity production and transmission system in the U.S. is about 31% efficient, the overall energy use and cost for heating water with electricity is still higher than with gas.

10.11   SWS Alignment
